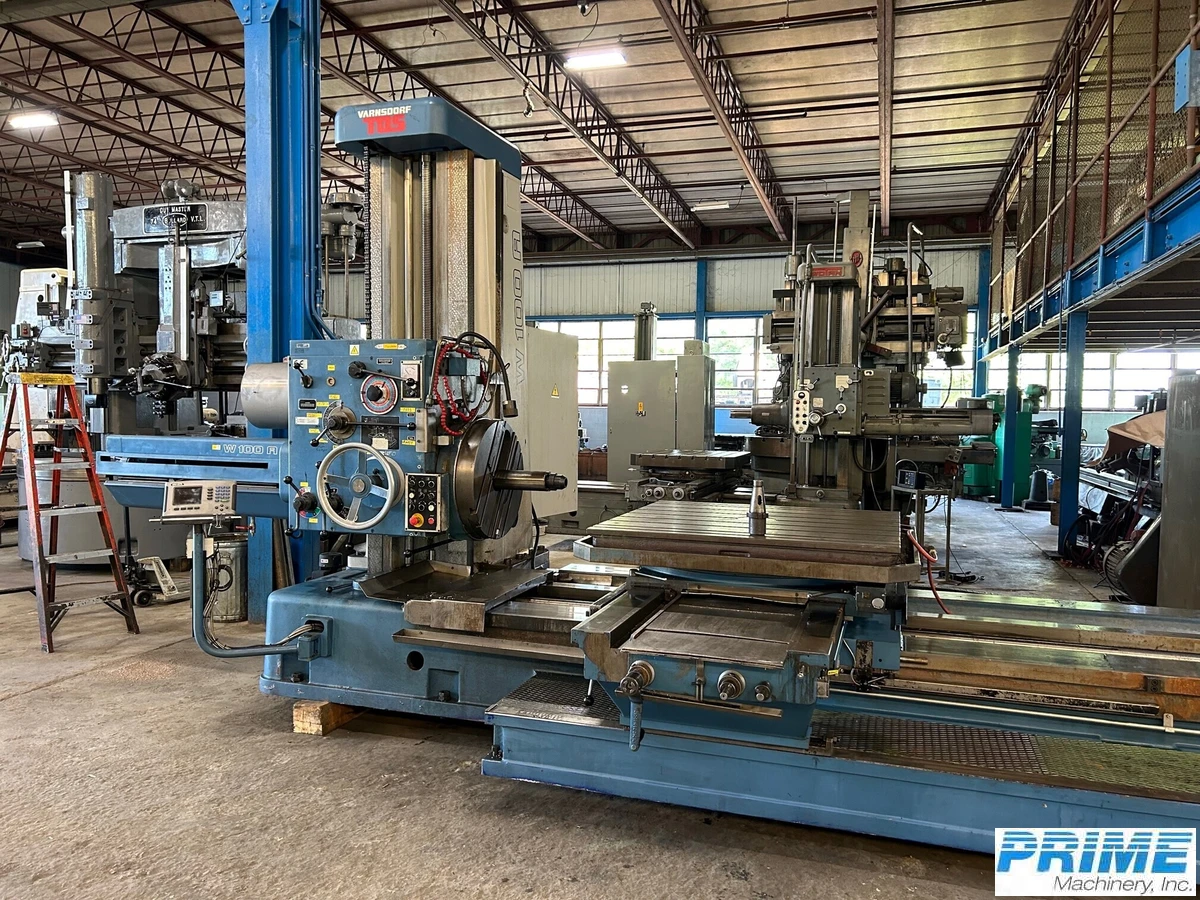

4" TOS MODEL: W100A TABLE TYPE HORIZONTAL BORING MILL - NEW: 2005
BORING MILLS, HORIZONTAL, TABLE TYPE
Explore this 2005 TOS W100A Horizontal Boring Mill: 4" spindle, 35.5" travel, robust 49"x49" table. Includes 4-axis DRO, rotary table, threading, and continuous feed facing head. Used, well-equipped for demanding tasks.
DIAMETER OF SPINDLE ............... 4"
TAPER OF SPINDLE .................. #50 STD.
SPINDLE TRAVEL .................... 35-1/2"
WORKING SURFACE TABLE ............. 49" X 49"
CROSS TABLE TRAVEL ................ 63"
MAX DISTANCE SPINDLE TO TABLE ..... 44"
SADDLE TRAVEL ..................... 49"
SPINDLE SPEEDS (23) ............... 7.1 TO 1120 RPM
FACEPLATE SPEEDS (16) ............. 7.1 TO 224 RPM
BORING FEED RANGES (32) ........... .0008 TO .47 IPR
MILLING FEEDS (18) ................ .7 TO 35.4 IPM
ROTARY TABLE FEEDS (18) ........... .98 TO 55 IPM
RAPID TRAVERSE RATE ............... 110 IPM
MAXIMUM WEIGHT OF WORK PIECE ...... 6,600 LBS.
WEIGHT APPROXIMATELY .............. 34,000 LBS.
- POWER DRAW BAR
- ACU-RITE FOUR AXIS DIGITAL READOUT
- ROTARY TABLE
- 23-1/2" BUILT-IN CONTINOUS FEED FACING HEAD
- INCH/METRIC THREADING CAPABILITY
- HARDENED AND GROUND BED AND TABLE WAYS
- 15 HORSE POWER MAIN MOTOR
